RESILIENT SEATED · FLANGED
FBEX (D942X)
Electric Flanged Resilient-Seated Butterfly Valve
Water systems and automated networks. Final configuration is selected against the actual medium, temperature, pressure, materials and control requirements.
KEY SPECIFICATIONS
Confirmed product definition
PRODUCT OVERVIEW
Built around the stated duty
FBEX (D942X) is a flanged butterfly valve with electric operation. Water systems and automated networks.
The final order configuration is confirmed against project conditions and approved technical documents.
SELECTION NOTES
Information to confirm
- Medium and operating temperature
- DN, pressure class and flange or end standard
- Body, disc, stem and seat materials
- On/off or modulating duty and required fail position
- Quantity, documentation and delivery requirements
STRUCTURE
Construction details

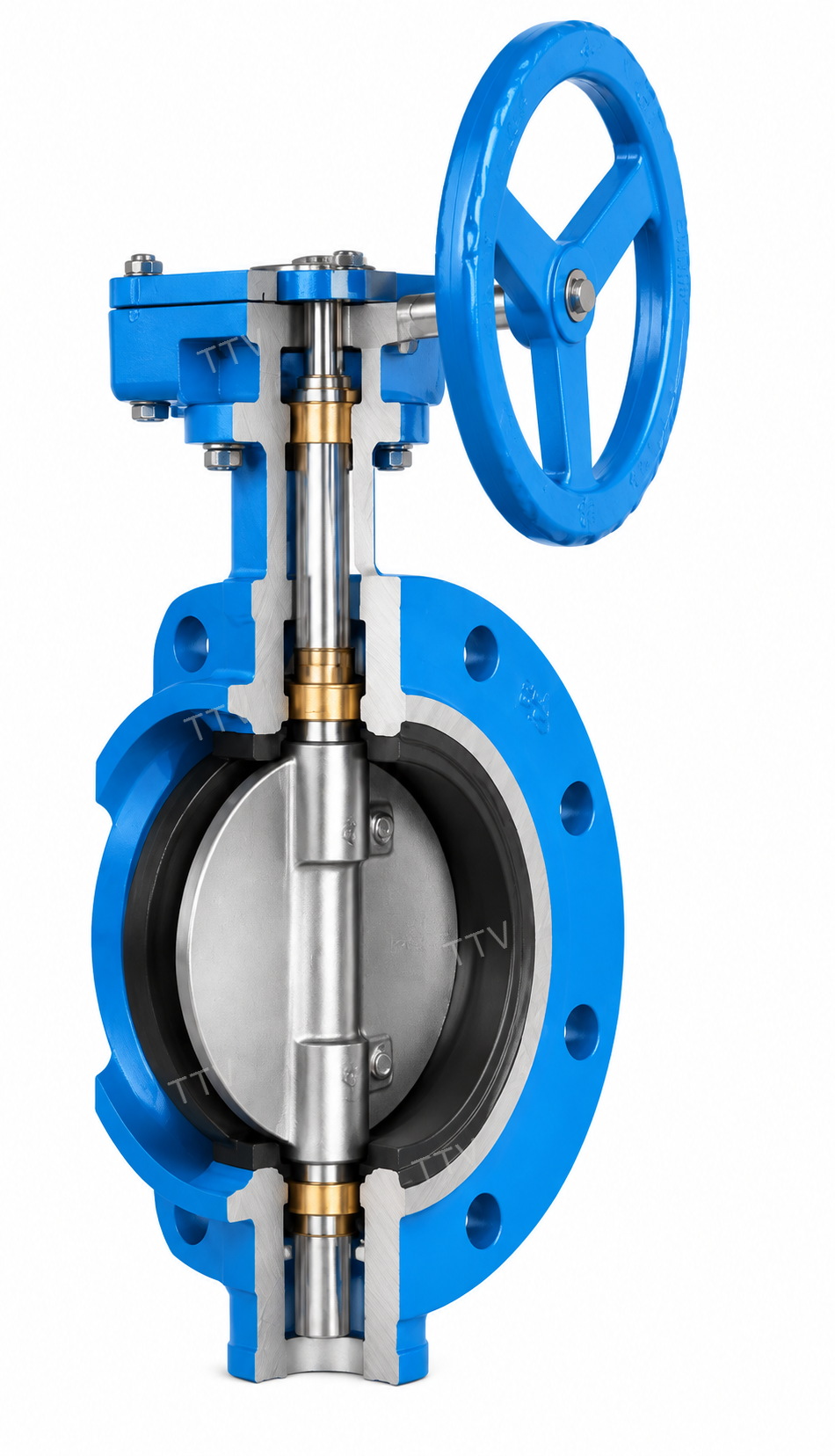

Valve-body construction shown. Actuator arrangement and final configuration vary by order.
TECHNICAL DATA
Specifications and dimensions
Final dimensions and configuration must follow the approved order drawing.
Technical Specifications
| Model | FBEX (D942X) |
|---|---|
| Connection | Flanged |
| Actuation | Electric |
| Sealing | Resilient seated |
| Typical service | Clean water, wastewater and circulating water and other available options |
APPLICATIONS
Use only after duty review
Water systems and automated networks. Media compatibility, temperature limits and actuation details must match the selected configuration.
FBEX (D942X) INQUIRY
