RESILIENT SEATED · WAFER
D371X
Gear-Operated Wafer Resilient-Seated Butterfly Valve
Desulfurization and compatible utility media. Final configuration is selected against the actual medium, temperature, pressure, materials and control requirements.

KEY SPECIFICATIONS
Confirmed product definition
PRODUCT OVERVIEW
Built around the stated duty

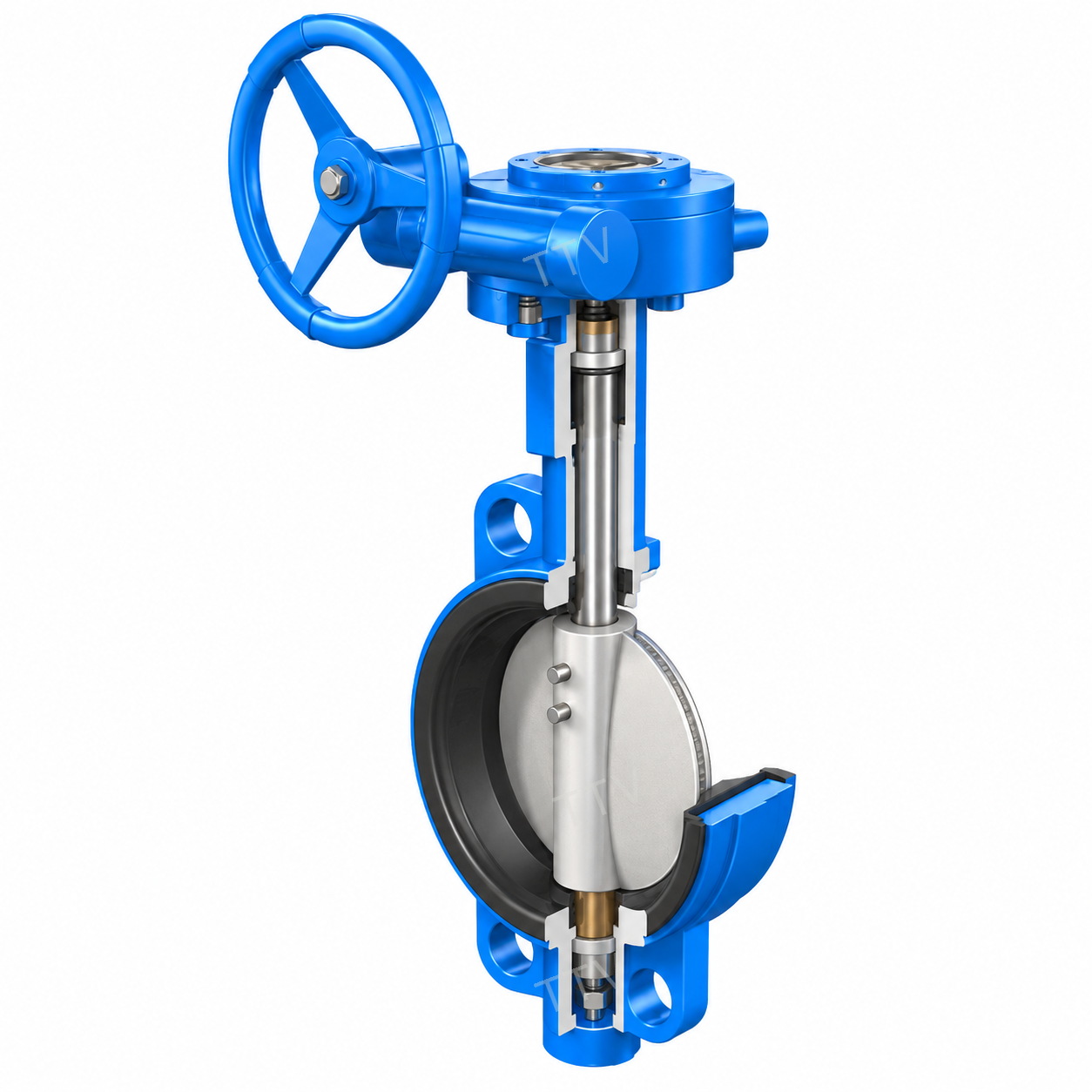

D371X is a worm gear operated wafer butterfly valve with resilient seating for isolation duties in compatible water, utility and industrial pipeline applications.
The final order configuration must be confirmed against the medium, temperature, pressure, materials and installation conditions, using approved technical documents.
D371X is operated manually through a worm gear and handwheel, rather than the direct hand lever used on D71X. Check access to the handwheel, clearance for operation, mounting orientation and the required operating frequency. For pneumatic operation, review D671X separately; pneumatic control requirements do not apply to this manual worm-gear configuration.
SELECTION NOTES
Information to confirm
- Medium and operating temperature
- DN and pressure class
- Pipeline / flange standard
- Body, disc, stem and seat material requirements
- Manual operating requirements and frequency, handwheel access, installation space and mounting orientation
- Required quantity
- Documentation / delivery requirements

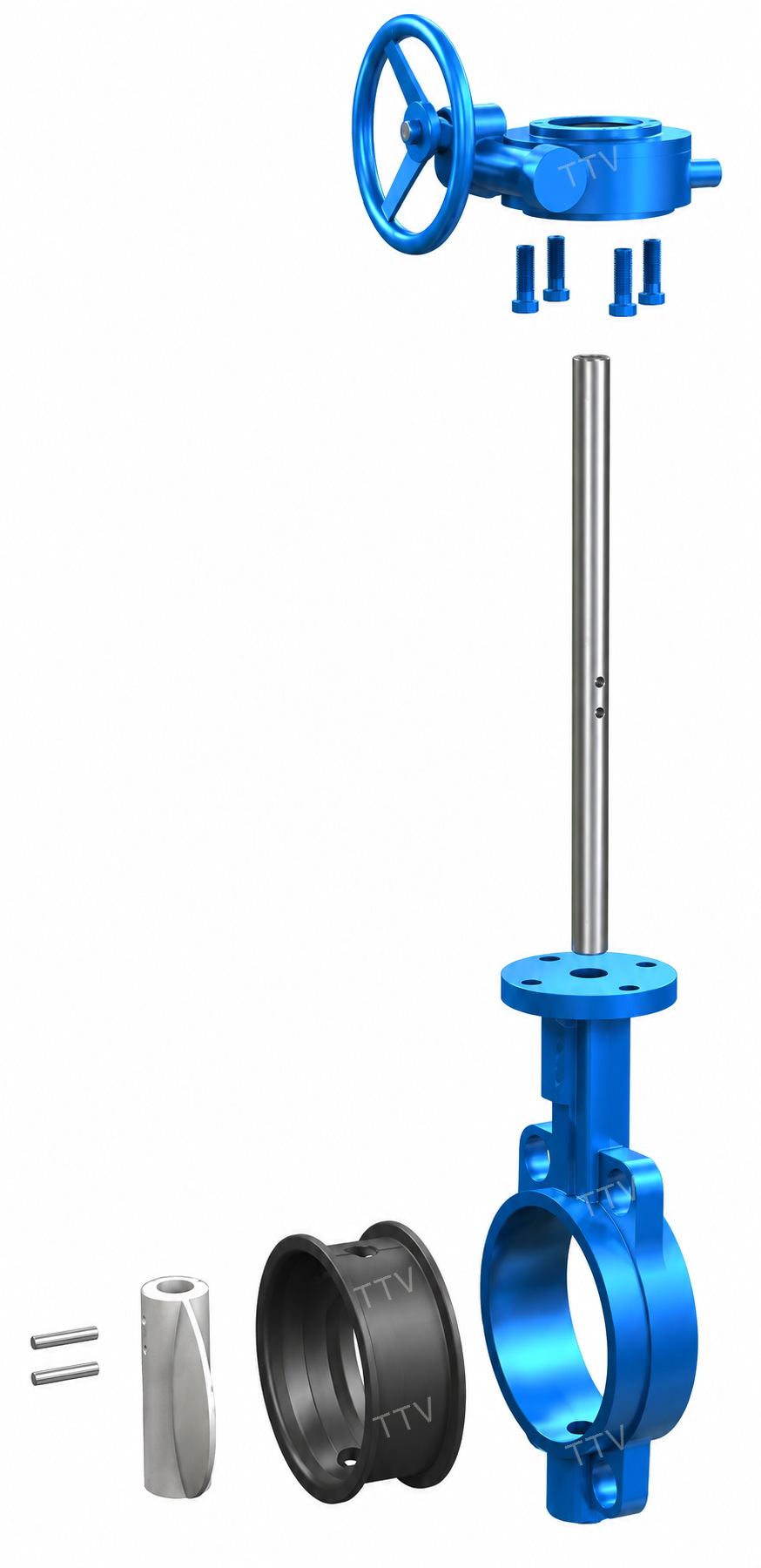

MATERIALS
Material options
DIMENSIONS
Dimension and connection drawings
Use the approved order drawing for final installation.
TECHNICAL DATA
Specifications and dimensions
Final dimensions and configuration must follow the approved order drawing. The diameter entries below are catalogue references, not confirmation that every listed size is available for every D371X configuration. Specify the required DN and pressure class; confirm availability and installation dimensions for the exact configuration against an approved drawing before ordering.
Technical Specifications
| Model | D371X |
|---|---|
| Nominal diameter | DN50–2000 / DN50–1600 |
| Nominal pressure | PN0.6 / 1.0 / 1.6 MPa |
| Seat test pressure | 0.66 / 1.1 / 1.76 MPa |
| Shell test pressure | 0.9 / 1.5 / 2.4 MPa |
| Operating temperature | NBR -40°C–90°C;FKM -20°C–200°C |
| Connection | Wafer |
| Actuation | Worm gear |
| Sealing | Resilient seated |
| Typical service | Desulfurization service |
| Suitable media | Water, air, natural gas, oil and mildly corrosive fluids |
| Leakage rate | In accordance with GB/T 13927 |
Materials / Performance Data
| Body | WCB, QT450-10, HT200, HT250 |
|---|---|
| Disc | WCB, QT450-10, HT200, HT250 |
| Stem | 2Cr13 |
| Seal ring | Oil-resistant NBR |
| Packing | Flexible graphite |
Dimensions and Connection Data 1
| DN | L | H | HO | A | B |
|---|---|---|---|---|---|
| 50 | 43 | 63 | 306 | 180 | 200 |
| 65 | 46 | 70 | 321 | 180 | 200 |
| 80 | 46 | 83 | 346 | 180 | 200 |
| 100 | 52 | 105 | 387 | 180 | 200 |
| 125 | 56 | 115 | 411 | 180 | 200 |
| 150 | 56 | 137 | 447 | 180 | 200 |
| 200 | 60 | 164 | 572 | 270 | 280 |
| 250 | 68 | 206 | 646 | 270 | 280 |
| 300 | 78 | 230 | 738 | 270 | 280 |
| 350 | 78 | 248 | 761 | 380 | 420 |
| 400 | 102 | 289 | 877 | 380 | 420 |
| 450 | 114 | 320 | 938 | 450 | 470 |
| 500 | 127 | 343 | 993 | 480 | 490 |
| 600 | 154 | 413 | 1131 | 480 | 490 |
| 700 | 165 | 478 | 1476 | 480 | 490 |
| 800 | 190 | 525 | 1533 | 640 | 660 |
| 900 | 203 | 585 | 1655 | 640 | 660 |
| 1000 | 216 | 640 | 1765 | 750 | 860 |
| 1200 | 254 | 755 | 1995 | 850 | 900 |
Dimensions and Connection Data 2
| DN | PN0.6 D0 | PN0.6 n-Φd | PN1.0 D0 | PN1.0 n-Φd | PN1.6 D0 | PN1.6 n-Φd |
|---|---|---|---|---|---|---|
| 50 | 110 | 4-14 | 125 | 4-18 | 125 | 4-18 |
| 65 | 130 | 4-14 | 145 | 4-18 | 145 | 4-18 |
| 80 | 150 | 4-18 | 160 | 8-18 | 160 | 8-18 |
| 100 | 170 | 4-18 | 180 | 8-18 | 180 | 8-18 |
| 125 | 200 | 8-18 | 210 | 8-18 | 210 | 8-18 |
| 150 | 225 | 8-18 | 240 | 8-22 | 240 | 8-22 |
| 200 | 280 | 8-18 | 295 | 8-22 | 295 | 8-22 |
| 250 | 335 | 12-18 | 350 | 12-22 | 355 | 12-26 |
| 300 | 395 | 12-22 | 400 | 12-22 | 410 | 12-26 |
| 350 | 445 | 12-22 | 460 | 16-22 | 470 | 16-26 |
| 400 | 495 | 16-22 | 515 | 16-26 | 525 | 16-30 |
| 450 | 550 | 16-22 | 565 | 20-26 | 585 | 20-30 |
| 500 | 600 | 20-22 | 620 | 20-26 | 650 | 20-33 |
| 600 | 705 | 20-26 | 725 | 20-30 | 770 | 20-36 |
| 700 | 810 | 24-26 | 840 | 24-30 | 840 | 24-36 |
| 800 | 920 | 24-30 | 950 | 24-33 | 950 | 24-39 |
| 900 | 1020 | 24-30 | 1050 | 28-33 | 1050 | 38-39 |
| 1000 | 1120 | 28-30 | 1160 | 28-36 | 1170 | 28-42 |
| 1200 | 1340 | 32-33 | 1380 | 32-39 | 1390 | 32-48 |
APPLICATIONS
Use only after duty review
Desulfurization and compatible utility media. Media compatibility, temperature limits and actuation details must match the selected configuration.
D371X INQUIRY
Send the operating conditions for configuration review
For a D371X quotation, send the medium, operating temperature and pressure, DN / PN, flange connection standard, body and disc materials, seat material, installation conditions and quantity. For batch purchasing, specify quantities by size and configuration, documentation needs and any brand, nameplate or packaging requirements. Discuss OEM cooperation; the technical and branding scope requires confirmation.
