RESILIENT SEATED · WAFER
D671X

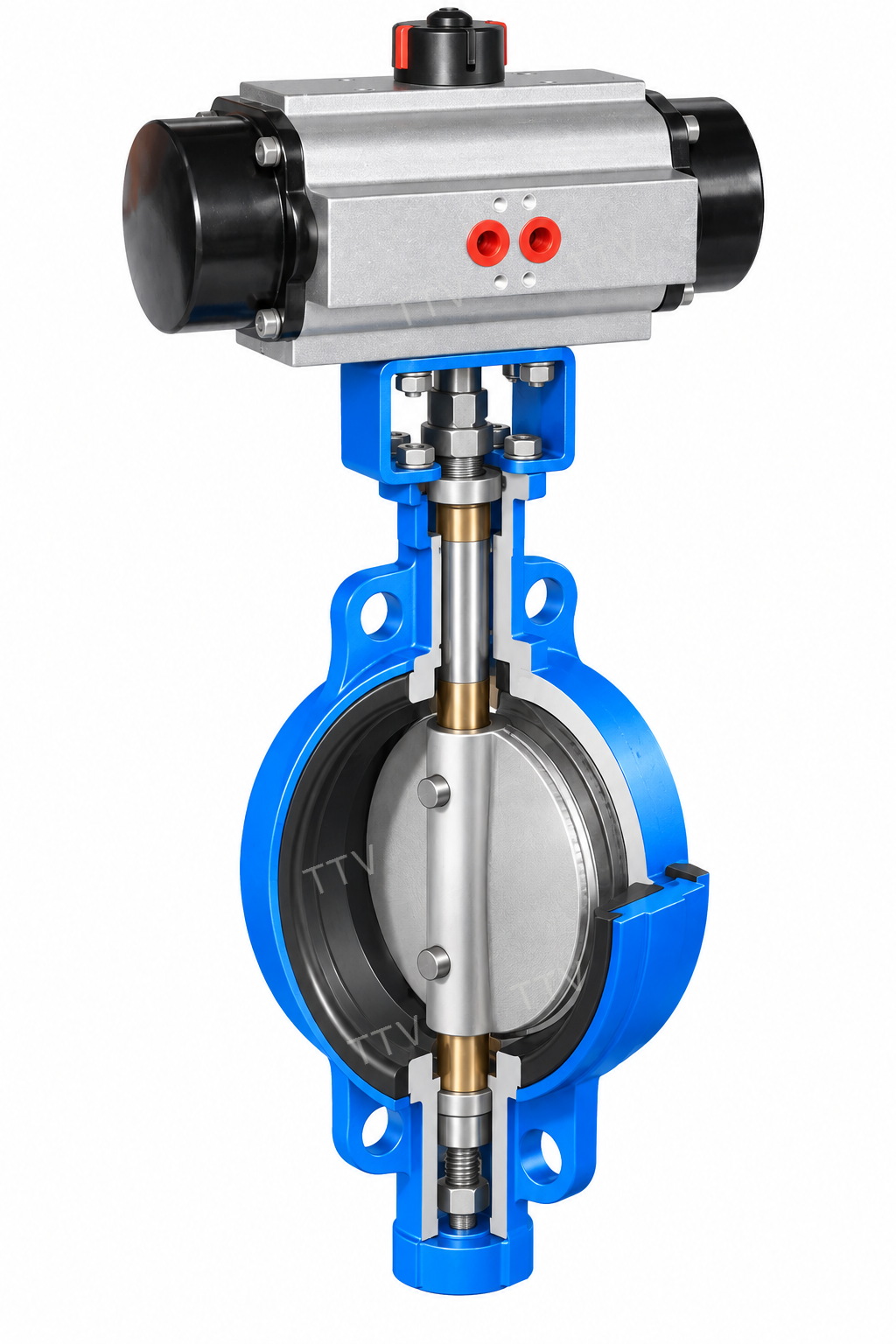

Pneumatic Wafer Resilient-Seated Butterfly Valve
Automated isolation. Final configuration is selected against the actual medium, temperature, pressure, materials and control requirements.

KEY SPECIFICATIONS
Confirmed product definition
PRODUCT OVERVIEW
Built around the stated duty
D671X is a pneumatic wafer resilient-seated butterfly valve for automated isolation applications confirmed against the actual service conditions.
Confirm the medium, operating temperature and pressure, DN / PN, flange standard, body, disc and seat materials, pneumatic actuator configuration and control requirements against the approved order documents.
Media compatibility and temperature suitability depend on the selected sealing material and the complete operating conditions. A listed temperature range alone does not establish steam compatibility; do not assume that every rubber-seated configuration is suitable for steam.
Send your pneumatic butterfly valve requirements to SHANGHAI TAITONG VALVE CO., LTD. for configuration review.
SELECTION NOTES
Information to confirm
- Medium, operating temperature and operating pressure
- DN / PN and pipeline / flange standard
- Body, disc and seat material requirements
- Minimum available instrument air pressure at the actuator and air supply quality
- Double-acting or spring-return requirement
- Required fail position, if applicable
- On/off or modulating duty
- Solenoid valve requirements
- Position feedback / limit switch requirements
- Control signal requirements
- Valve differential pressure and actuator torque review at the available air pressure
- Installation space, actuator access and mating flange / pipe-bore clearance
- Quantity and project documentation
These are requirements to confirm, not standard equipment or performance claims. Actuator arrangement, accessories and control functions must be agreed for the ordered configuration.
Can NBR and EPDM seats be selected from temperature alone?
No. The seat-material table lists reference compounds, not interchangeable approvals for every medium. Provide the fluid composition and concentration, operating temperature and pressure, and any cleaning or intermittent service conditions. Confirm the exact compound and compatibility for the proposed order; a listed temperature range does not establish chemical or steam suitability.
What must be checked for actuator sizing and wafer installation?
Confirm the required valve opening, closing and seating torque for the project differential pressure, then review the proposed actuator against the minimum air pressure available at its location. Define the required loss-of-air action and assess it with the proposed double-acting or spring-return arrangement and control circuit; neither arrangement nor a specific fail position is promised as standard. For wafer installation, check the mating flange standard and drilling, pipe bore, valve centering, disc clearance and gasket requirements against the approved installation drawing. Confirm space for the actuator, accessories and maintenance access.
Send D671X pneumatic selection requirements →MATERIALS
Material options
DIMENSIONS
Dimension and connection drawings
Use the approved order drawing for final installation.
TECHNICAL DATA
Specifications and dimensions
Final dimensions and configuration must follow the approved order drawing.
Technical Specifications
| Model | D671X |
|---|---|
| Nominal diameter | DN50–2000 |
| Nominal pressure | PN0.6 / 1.0 / 1.6 MPa |
| Shell test pressure | 0.9 / 1.5 / 2.4 MPa |
| Seat test pressure | 0.66 / 1.1 / 1.76 MPa |
| Air seat test | 0.6 / 0.6 / 0.6 MPa |
| Connection | Wafer |
| Actuation | Pneumatic |
| Sealing | Resilient seated |
| Suitable media | Air, Water, Wastewater, Steam, Gas, Oil and other available options |
Materials / Performance Data
| Body | Ductile iron, Cast steel, Alloy steel, Stainless steel |
|---|---|
| Disc | Grey cast iron, Ductile iron, Cast steel, Stainless steel and Special materials |
| Seal ring | Rubber compounds, PTFE |
| Stem | 2Cr13, Stainless steel |
| Packing | O-type ring, Flexible graphite |
Seat Materials and Temperature Ranges
| Neoprene | CR | X or J | 0~+80°C |
|---|---|---|---|
| NBR | NBR | XA or JA | -20~+82°C |
| EPDM | EPDM | XB or JB | -40~+125°C |
| PTFE | PTFE | F or XC, JC | -30~+150°C |
| Silicone rubber | SI | XD or JD | -70~+150°C |
| FKM | VITON | XE or JE | -23~+150°C |
| Natural rubber | NR | X1 | -20~+85°C |
| Nylon | PA | N | -30~+93°C |
Dimensions and Connection Data 2
| DN | L | H | H0 | A | B |
|---|---|---|---|---|---|
| 50 | 43 | 63 | 315 | 180 | 65 |
| 65 | 46 | 70 | 330 | 180 | 65 |
| 80 | 46 | 83 | 390 | 245 | 72 |
| 100 | 52 | 105 | 431 | 240 | 72 |
| 125 | 56 | 115 | 455 | 240 | 72 |
| 150 | 56 | 137 | 626 | 350 | 93 |
| 200 | 60 | 164 | 720 | 350 | 93 |
| 250 | 68 | 206 | 800 | 550 | 350 |
| 300 | 78 | 230 | 860 | 600 | 350 |
| 350 | 78 | 248 | 883 | 600 | 350 |
| 400 | 102 | 289 | 972 | 600 | 350 |
| 450 | 114 | 320 | 1043 | 750 | 380 |
| 500 | 127 | 343 | 1098 | 750 | 380 |
| 600 | 154 | 413 | 1236 | 750 | 380 |
| 700 | 165 | 478 | 1431 | 750 | 380 |
| 800 | 190 | 525 | 1488 | 750 | 380 |
| 900 | 203 | 620 | 1615 | 1250 | 380 |
| 1000 | 216 | 725 | 1765 | 1500 | 580 |
| 1200 | 254 | 780 | 1976 | 1500 | 580 |
Dimensions and Connection Data 3
| DN | PN0.6 D0 | PN0.6 n-Φd | PN1.0 D0 | PN1.0 n-Φd | PN1.6 D0 | PN1.6 n-Φd |
|---|---|---|---|---|---|---|
| 50 | 110 | 4-14 | 125 | 4-18 | 125 | 4-18 |
| 65 | 130 | 4-14 | 145 | 4-18 | 145 | 4-18 |
| 80 | 150 | 4-18 | 160 | 8-18 | 160 | 8-18 |
| 100 | 170 | 4-18 | 180 | 8-18 | 180 | 8-18 |
| 125 | 200 | 8-18 | 210 | 8-18 | 210 | 8-18 |
| 150 | 225 | 8-18 | 240 | 8-22 | 240 | 8-22 |
| 200 | 280 | 8-18 | 295 | 8-22 | 295 | 8-22 |
| 250 | 335 | 12-18 | 350 | 12-22 | 355 | 12-26 |
| 300 | 395 | 12-22 | 400 | 12-22 | 410 | 12-26 |
| 350 | 445 | 12-22 | 460 | 16-22 | 470 | 16-26 |
| 400 | 495 | 16-22 | 515 | 16-26 | 525 | 16-30 |
| 450 | 550 | 16-22 | 565 | 20-26 | 585 | 20-30 |
| 500 | 600 | 20-22 | 620 | 20-26 | 650 | 20-33 |
| 600 | 705 | 20-26 | 725 | 20-30 | 770 | 20-36 |
| 700 | 810 | 24-26 | 840 | 24-30 | 840 | 24-36 |
| 800 | 920 | 24-30 | 950 | 24-33 | 950 | 24-39 |
| 900 | 1020 | 24-30 | 1050 | 28-33 | 1050 | 28-39 |
| 1000 | 1120 | 28-30 | 1160 | 28-36 | 1170 | 28-42 |
| 1200 | 1340 | 32-33 | 1380 | 32-39 | 1390 | 32-48 |
APPLICATIONS
Use only after duty review
Automated isolation. Media compatibility, temperature limits and actuation details must match the selected configuration.
D671X INQUIRY
Send the operating conditions for configuration review
For a D671X RFQ, provide DN / PN, flange standard and pipe bore, medium and composition, operating temperature and pressure, maximum differential pressure, body / disc / seat materials, minimum available air pressure and air quality, control duty, required loss-of-air action, accessory and signal requirements, installation space and quantity. Include a valve schedule or approved drawing where available.
Need a different sealing or connection arrangement? Compare the D673H pneumatic wafer metal-seated butterfly valve or D643H pneumatic flanged metal-seated butterfly valve; each requires its own service-condition and installation review.
