METAL SEATED · WAFER

D673H

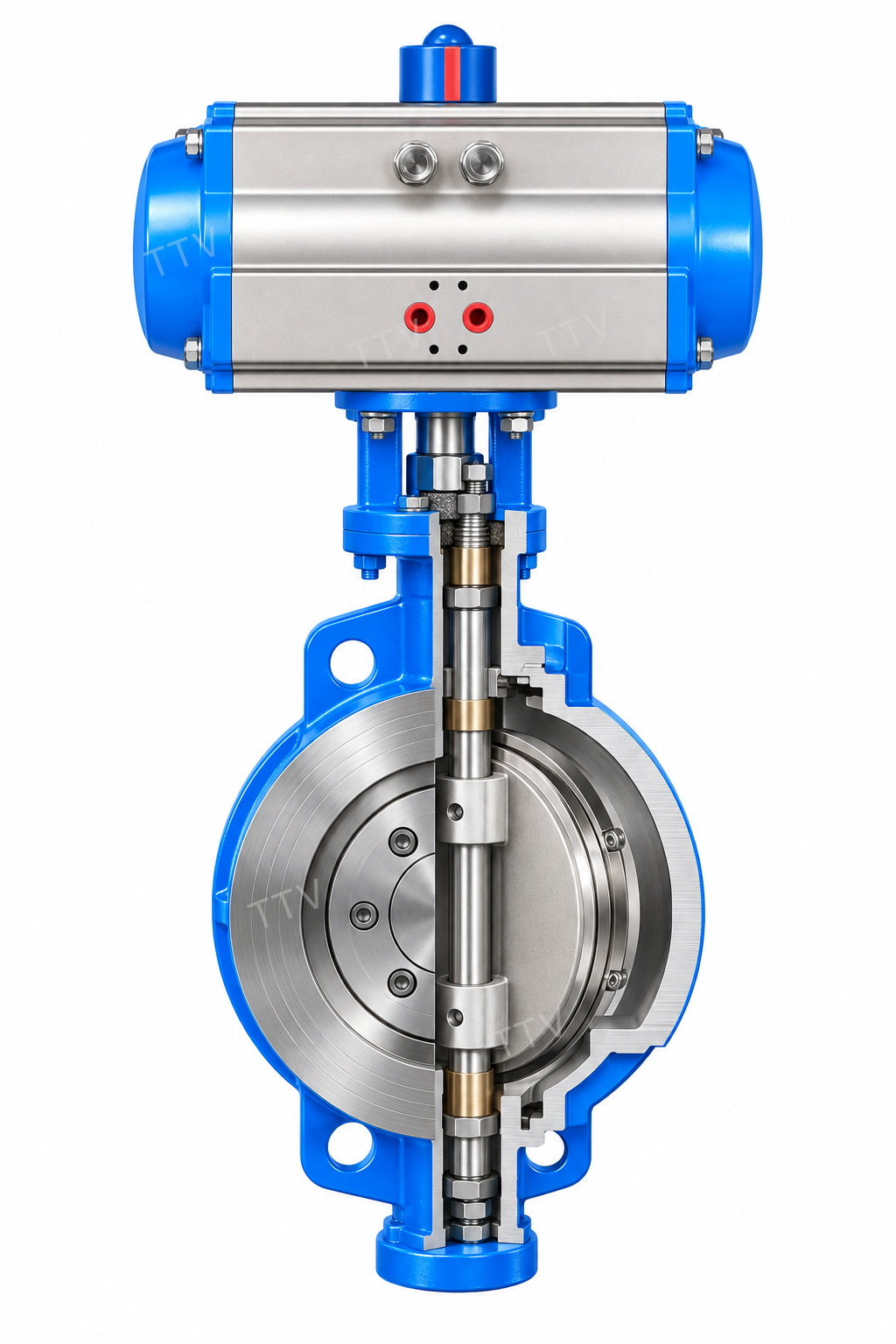

Pneumatic Wafer Metal-Seated Butterfly Valve

Pneumatic industrial isolation; operating speed and interlock functions require configuration review. Final configuration is selected against the actual medium, temperature, pressure, materials and control requirements.

KEY SPECIFICATIONS

Confirmed product definition

ModelD673H
Sealing / familyMetal seated
ConnectionWafer
ActuationPneumatic
Size rangeDN100–2000
Pressure rangePN1.0–2.5 MPa
Temperature-29 to 425°C for the stated WCB configuration
MediaWater, steam and oils, subject to material review

PRODUCT OVERVIEW

Built around the stated duty

D673H is a pneumatic wafer metal-seated butterfly valve with the stated multi-layer metal sealing configuration. Review the medium, temperature, operating pressure and pressure differential together with the proposed body, disc, stem, sealing pair and packing. Water, steam and oil references do not establish suitability for every material combination or operating condition.

The final order configuration is confirmed against project conditions and approved technical documents. For wafer installation, match the flange standard, drilling and pipe bore to the approved valve drawing, and confirm disc clearance, centering, gasket requirements and access around the pneumatic actuator. A matching nominal diameter alone does not complete the installation review.

SELECTION NOTES

Information to confirm

  • Medium and composition, operating temperature, operating pressure and maximum differential pressure
  • DN / PN, flange standard, drilling, pipe bore and approved connection dimensions
  • Body, disc, stem, metal sealing pair and packing requirements
  • Minimum instrument air pressure available at the actuator, air quality and supply treatment requirements
  • On/off or modulating duty, operating frequency, opening / closing time and control method
  • Single-acting / spring-return or double-acting requirement and the required action on loss of air, subject to configuration review
  • Actuator torque verification against valve opening, closing and seating requirements at the project differential pressure and available air pressure
  • Solenoid valve, positioner, limit / position feedback and interlock requirements, with any accessory power and signal requirements
  • Mounting orientation, installation and maintenance space, ambient conditions and environmental protection requirements
  • Quantity, valve schedule, project documentation and any required approvals

These are inputs for selection, not included-equipment or availability claims. Confirm the actuator arrangement, accessories, control signals and any loss-of-air function for the proposed order; do not assume a default fail-open, fail-close or modulating configuration.

Does the WCB temperature reference apply to every material option?

No. The stated temperature reference belongs to the WCB configuration. Confirm the complete pressure-temperature duty and all wetted and sealing materials for the actual order. Do not transfer that reference to another body material, sealing pair or packing combination without review.

Does pneumatic operation include interlock or modulating control?

Not by itself. Define the control sequence, required feedback and any interlock interface before selecting the actuator and accessories. Modulating duty requires review of the control arrangement and operating requirements; no positioner, signal type, stroke time or accessory package is implied as standard.

MATERIALS

Material options

BodyWCB, WC6, CF8, CF8M, CF3, CF3M
DiscWCB+ENP, WC6+STL, CF8+STL, CF8M+STL and confirmed combinations
Seat / sealing pairStainless steel, Stellite and other confirmed metal-seal configurations
Stem2Cr13, 25Cr2MoV and stainless steels

DIMENSIONS

Dimension and connection drawings

Use the approved order drawing for final installation.

TECHNICAL DATA

Specifications and dimensions

Final dimensions and configuration must follow the approved order drawing.

Technical Specifications

ModelD673H
Size rangeDN100–2000
Pressure ratingPN1.0–2.5MPa
Operating temperature-29–425°C (WCB configuration)
ConnectionWafer
ActuationPneumatic
SealingMulti-layer metal seating
Suitable mediaWater, steam and oil

Materials / Performance Data

BodyWCB, WC6, CF8, CF8M, CF3, CF3M
DiscWCB+ENP, WC6+STL, CF8+STL, CF8M+STL and other available options
Stem2Cr13, 25Cr2MoV and stainless steel
Seat / sealing pairStainless steel, Stellite and other available options; metal sealing configuration
PackingFlexible graphite or PTFE (configured for material and temperature)

Dimensions and Connection Data 1

DNLD1z-Φd
100641808-Φ18
125702108-Φ18
150762408-Φ22
2008929512-Φ22
25011435512-Φ26
30011441012-Φ26
35012747016-Φ33
40014052516-Φ30
45015258520-Φ30
50015265020-Φ33
60017877020-Φ36

APPLICATIONS

Use only after duty review

Pneumatic industrial isolation; operating speed and interlock functions require configuration review. Media compatibility, temperature limits and actuation details must match the selected configuration.

D673H INQUIRY

Send the operating conditions for configuration review

For a D673H RFQ, send DN / PN, flange standard and pipe bore, medium and composition, operating temperature and pressure, maximum differential pressure, body / disc / sealing material requirements, minimum available air pressure and air quality, control duty, required loss-of-air action, accessory and signal requirements, installation space and quantity. Include a valve schedule or approved project drawing where available.

For a flanged pneumatic alternative, review D643H. For electric operation with a wafer connection, review D973H. Confirm the connection and actuation differences against the project duty rather than treating these as interchangeable configurations.
