METAL SEATED · FLANGED
D643H

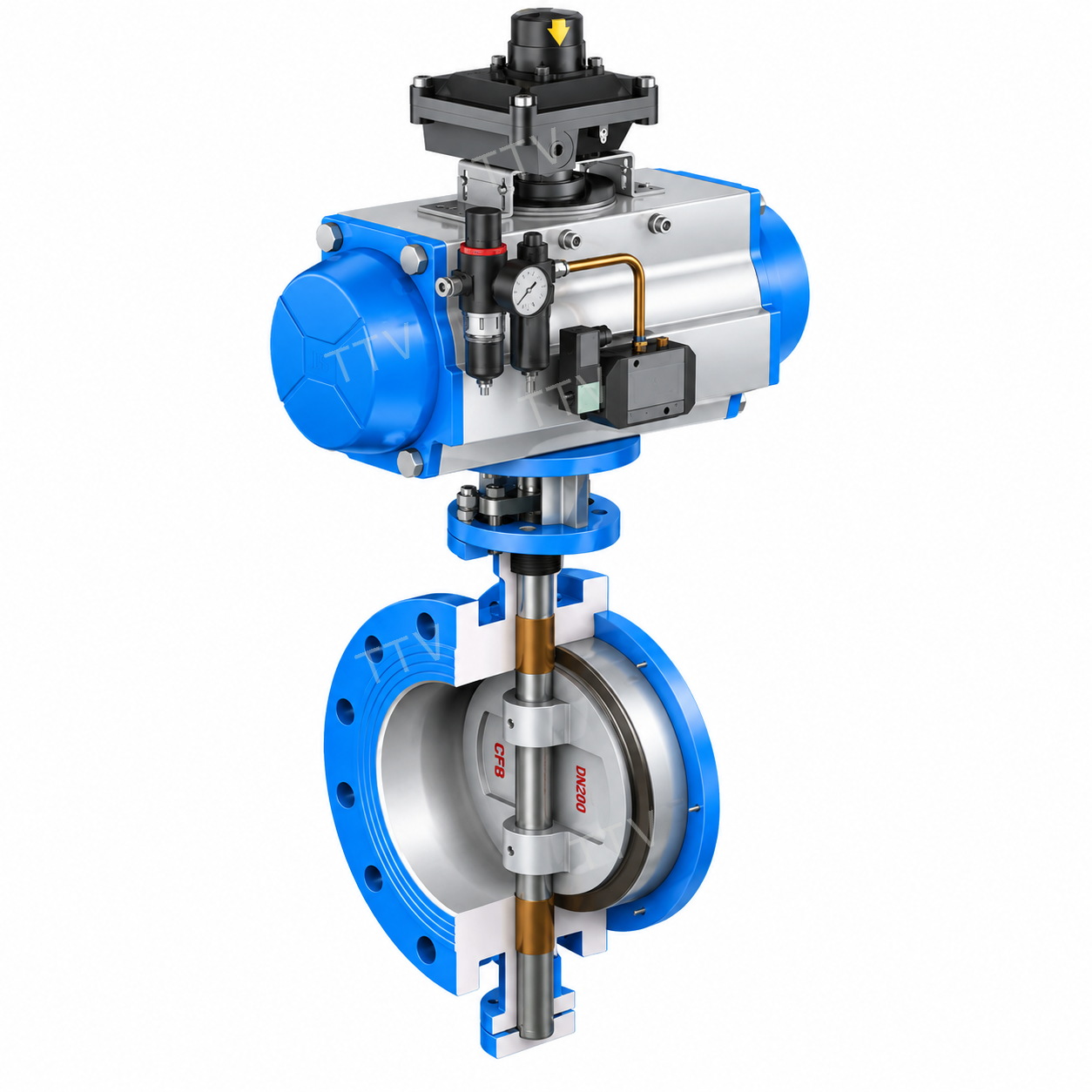

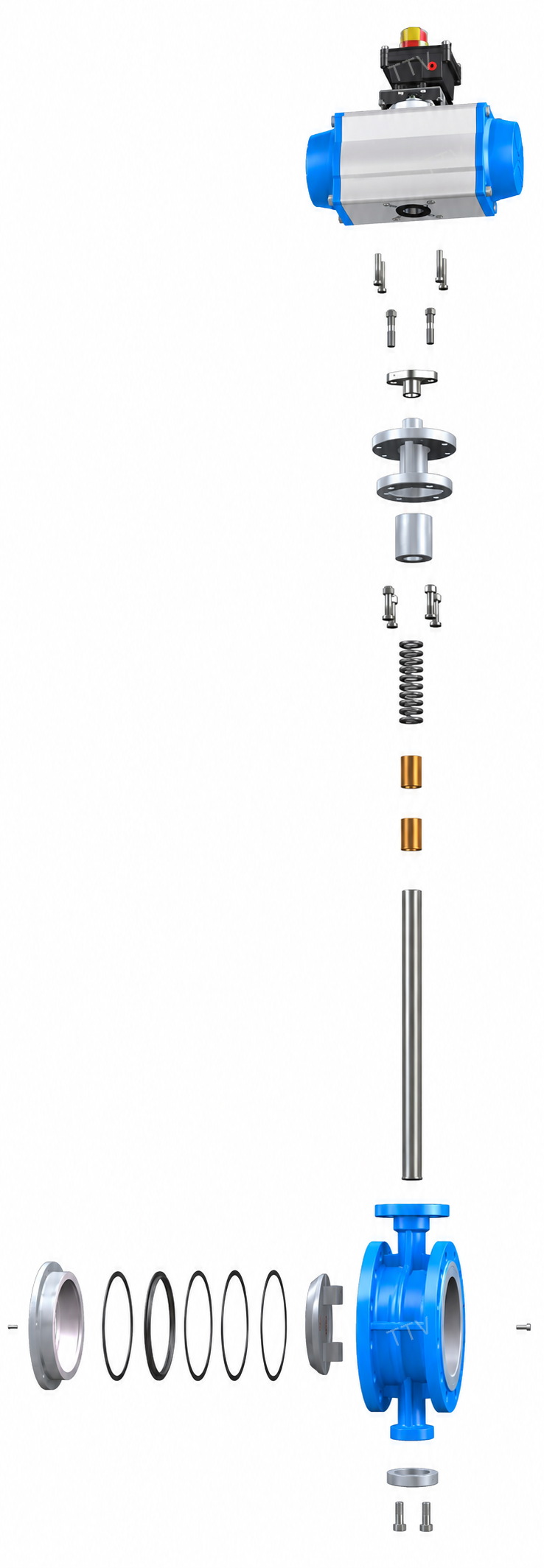

Pneumatic Flanged Metal-Seated Butterfly Valve
Automated industrial isolation. Final configuration is selected against the actual medium, temperature, pressure, materials and control requirements.

KEY SPECIFICATIONS
Confirmed product definition
PRODUCT OVERVIEW
Built around the stated duty
D643H is a pneumatic flanged metal-seated butterfly valve for industrial pipeline isolation, subject to review of the actual duty. The listed sealing configuration uses multi-layer metal seating. Confirm the medium, operating temperature, pressure, differential pressure, flange standard and wetted materials before selecting the valve and actuator together.
The final order configuration is confirmed against project conditions and approved technical documents. State the minimum available instrument air pressure at the actuator and the supply quality, including filtration, moisture and any treatment requirements. Actuator sizing must consider valve opening, closing and seating torque under the project pressure differential, the available air pressure and the proposed actuator arrangement; no torque value or air-pressure requirement is implied by this page.
SELECTION NOTES
Information to confirm
- Medium, operating temperature, operating pressure and differential pressure
- DN / PN, flange connection standard and body, disc, stem and sealing materials
- Minimum available instrument air pressure and air supply quality at the valve location
- On/off or modulating duty, operating frequency, required stroke time and control method
- Double-acting or spring-return arrangement, with the required action on loss of air explicitly defined
- Solenoid valve, limit switch / position feedback and positioner requirements, where applicable
- Control signal and electrical supply requirements for any proposed accessories
- Valve torque review, actuator clearance, mounting orientation, ambient conditions and required environmental protection
- Quantity, project documentation and any site-specific approval requirements
These are requirements for configuration review, not a list of standard or included accessories. Confirm suitability, availability and documentation for the proposed valve, actuator and accessory combination.
Does D643H automatically close when air is lost?
Do not assume a loss-of-air position from the valve model. Define the required action and confirm it with the proposed actuator and control circuit. Spring-return and double-acting arrangements have different operating requirements; neither a fail-open nor fail-close function is promised as standard.
Can the same configuration serve on/off and modulating duties?
Specify the duty before selection. Review cycling, control signals, feedback, actuator sizing and any positioner or control accessories for that duty. A pneumatic actuator alone does not establish modulating capability.
DIMENSIONS
Dimension and connection drawings
Use the approved order drawing for final installation.

TECHNICAL DATA
Specifications and dimensions
Final dimensions and configuration must follow the approved order drawing.
Technical Specifications
| Model | D643H |
|---|---|
| Size range | DN100–2000 |
| Pressure rating | PN1.0–2.5MPa |
| Operating temperature | -29–425°C (WCB configuration) |
| Connection | Flanged |
| Actuation | Pneumatic |
| Sealing | Multi-layer metal seating |
| Suitable media | Water, steam and oil |
Materials / Performance Data
| Body | WCB, WC6, CF8, CF8M, CF3, CF3M |
|---|---|
| Disc | WCB+ENP, WC6+STL, CF8+STL, CF8M+STL and other available options |
| Stem | 2Cr13, 25Cr2MoV and stainless steel |
| Seat / sealing pair | Stainless steel, Stellite and other available options; metal sealing configuration |
| Packing | Flexible graphite or PTFE (configured for material and temperature) |
Dimensions and Connection Data 1
| DN | L | D | D1 | z-Φd |
|---|---|---|---|---|
| 100 | 127 | 220 | 180 | 8-Φ18 |
| 125 | 140 | 250 | 210 | 8-Φ18 |
| 150 | 140 | 285 | 240 | 8-Φ22 |
| 200 | 152 | 340 | 295 | 12-Φ22 |
| 250 | 165 | 405 | 355 | 12-Φ26 |
| 300 | 178 | 460 | 410 | 12-Φ26 |
| 350 | 190 | 520 | 470 | 16-Φ26 |
| 400 | 216 | 580 | 525 | 16-Φ30 |
| 450 | 222 | 640 | 585 | 20-Φ30 |
| 500 | 229 | 715 | 650 | 20-Φ33 |
| 600 | 267 | 840 | 770 | 20-Φ36 |
APPLICATIONS
Use only after duty review
Automated industrial isolation. Media compatibility, temperature limits and actuation details must match the selected configuration.
D643H INQUIRY
Send the operating conditions for configuration review
For a D643H RFQ, provide DN / PN, flange standard, medium, operating temperature and pressure, differential pressure, material requirements, available air supply, control duty, required loss-of-air action, accessory requirements, installation space, site environment and quantity. Attach a valve schedule or project specification when available.
For alternative wafer connections, review the D671X pneumatic resilient-seated butterfly valve or D673H pneumatic metal-seated butterfly valve. Connection and sealing differences require a separate duty review.
