METAL SEATED · FLANGED

D943H

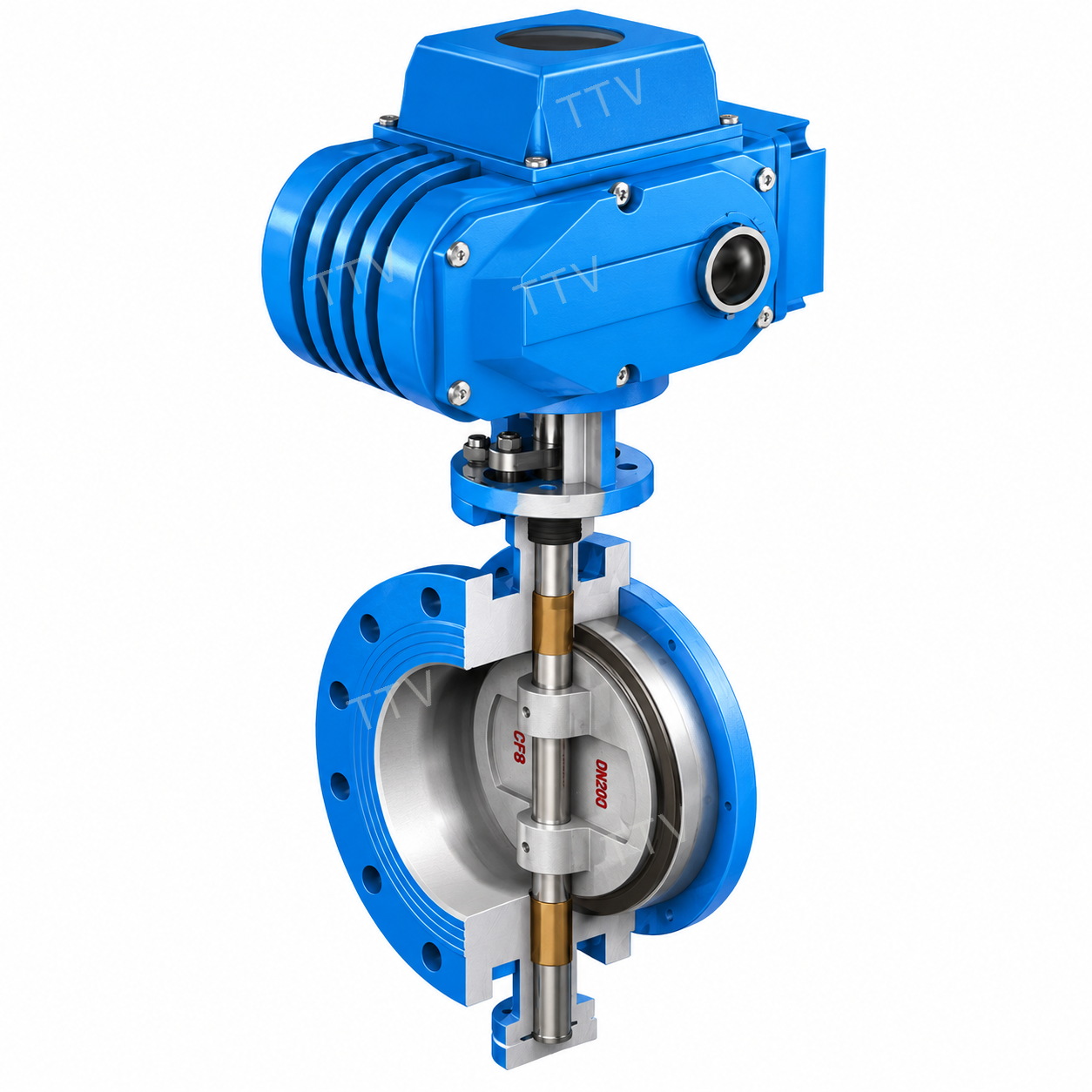

Electric Flanged Metal-Seated Butterfly Valve

Remote industrial isolation. Final configuration is selected against the actual medium, temperature, pressure, materials and control requirements.

KEY SPECIFICATIONS

Confirmed product definition

ModelD943H
Sealing / familyMetal seated
ConnectionFlanged
ActuationElectric
Size rangeDN100–2000
Pressure rangePN1.0–2.5 MPa
Temperature-29 to 425°C for the stated WCB configuration
MediaWater, steam and oils, subject to material review

PRODUCT OVERVIEW

Built around the stated duty

D943H is an electric flanged metal-seated butterfly valve for industrial pipeline isolation, subject to confirmation of the service conditions. The stated sealing configuration uses multi-layer metal seating. Match the body, disc, stem and sealing materials to the actual medium, operating temperature and pressure; do not apply one material configuration's temperature limits to every option.

The final order configuration is confirmed against project conditions and approved technical documents. For an electric actuator, specify on/off or modulating duty, the available power supply (voltage, phase and frequency), control commands, position feedback and required operating sequence. Actuator torque must be reviewed against the selected valve's opening, closing and seating requirements under the project pressure differential; no actuator torque or control package is implied as standard.

SELECTION NOTES

Information to confirm

  • Medium, operating temperature, operating pressure and differential pressure
  • DN, PN and mating flange connection standard
  • Body, disc, stem and metal-seal material requirements
  • On/off or modulating duty, operating frequency and required opening / closing time
  • Available power supply: voltage, phase and frequency
  • Control commands, control signal and position feedback requirements
  • Actuator torque review, installation clearance, ambient conditions and required enclosure protection
  • Quantity, project documentation and any required action on loss of power, to be reviewed for the specified actuator

These are configuration inputs to confirm, not a statement that every actuator or accessory is available or included.

Is the D943H actuator on/off or modulating?

Specify the required duty before ordering. Confirm the actuator, control interface and feedback together; the model name alone does not establish a modulating configuration.

What site information is needed for actuator selection?

Provide the electrical supply, control requirements, ambient temperature, indoor or outdoor location, exposure to moisture or dust, access space and any hazardous-area requirements. Suitability and any required documentation must be confirmed; no enclosure rating or certification is implied.

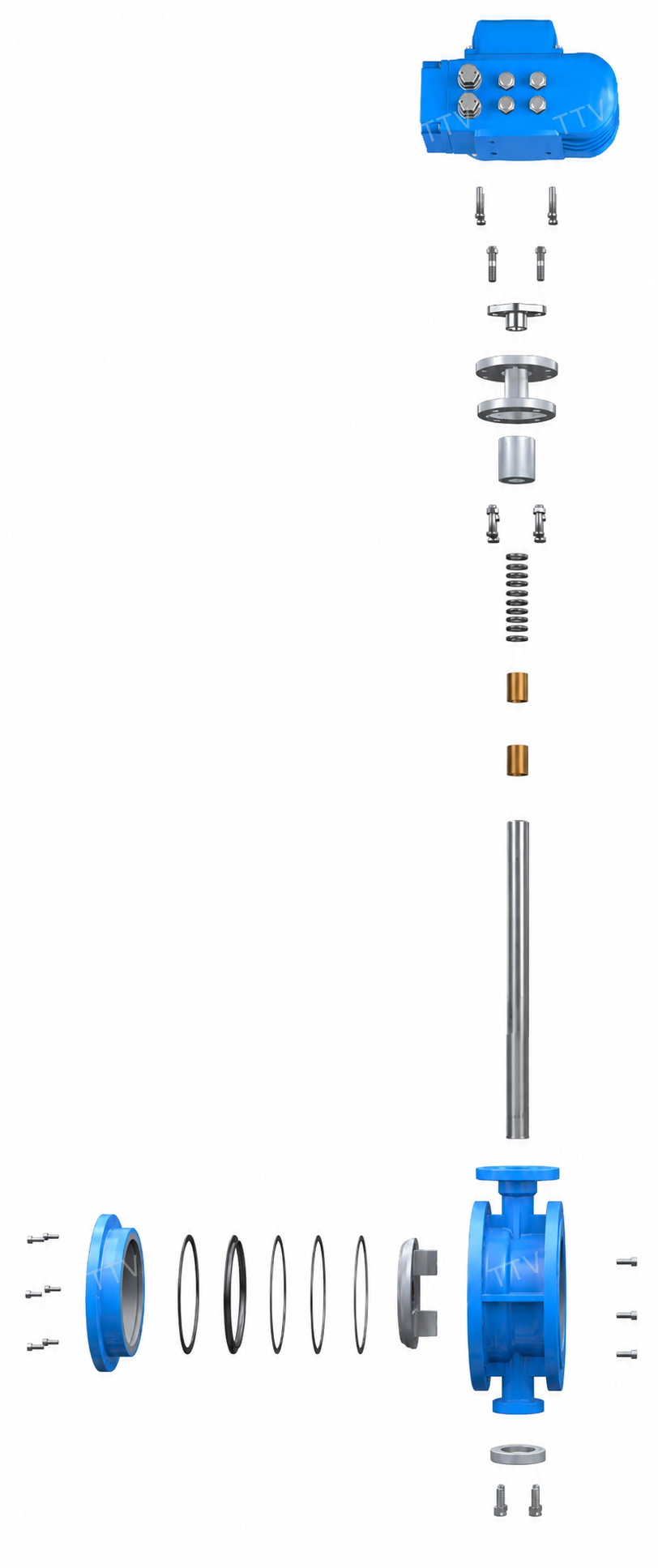

MATERIALS

Material options

BodyWCB, WC6, CF8, CF8M, CF3, CF3M
DiscWCB+ENP, WC6+STL, CF8+STL, CF8M+STL and confirmed combinations
Seat / sealing pairStainless steel, Stellite and other confirmed metal-seal configurations
Stem2Cr13, 25Cr2MoV and stainless steels

DIMENSIONS

Dimension and connection drawings

Use the approved order drawing for final installation.

TECHNICAL DATA

Specifications and dimensions

Final dimensions and configuration must follow the approved order drawing.

Technical Specifications

ModelD943H
Size rangeDN100–2000
Pressure ratingPN1.0–2.5MPa
Operating temperature-29–425°C (WCB configuration)
ConnectionFlanged
ActuationElectric
SealingMulti-layer metal seating
Suitable mediaWater, steam and oil

Materials / Performance Data

BodyWCB, WC6, CF8, CF8M, CF3, CF3M
DiscWCB+ENP, WC6+STL, CF8+STL, CF8M+STL and other available options
Stem2Cr13, 25Cr2MoV and stainless steel
Seat / sealing pairStainless steel, Stellite and other available options; metal sealing configuration
PackingFlexible graphite or PTFE (configured for material and temperature)

Dimensions and Connection Data 1

DNLDD1z-Φd
1001272201808-Φ18
1251402502108-Φ18
1501402852408-Φ22
20015234029512-Φ22
25016540535512-Φ26
30017846041012-Φ26
35019052047016-Φ26
40021658052516-Φ30
45022264058520-Φ30
50022971565020-Φ33
60026784077020-Φ36

APPLICATIONS

Use only after duty review

Remote industrial isolation. Media compatibility, temperature limits and actuation details must match the selected configuration.

D943H INQUIRY

Send the operating conditions for configuration review

For a D943H quotation, send DN / PN, medium, operating temperature and pressure, pressure differential, flange standard, material requirements, electrical supply, control duty, site conditions and quantity. Include a valve schedule or project specification when available.

Need a different connection or operating arrangement? Review the D973H electric wafer metal-seated butterfly valve or the D343H metal-seated flanged butterfly valve and confirm the required actuation separately.
