METAL SEATED · FLANGED
D343H
Metal Seated Flanged Butterfly Valve
Triple-offset metal seated construction with flanged connections for industrial pipeline isolation and configuration-reviewed control duties. Select against the medium, temperature, pressure, DN, actuation and operating conditions.

KEY SPECIFICATIONS
Confirmed product definition
D343H uses manual worm-gear operation. Electric and pneumatic requirements need confirmation of the corresponding product configuration.
PRODUCT OVERVIEW
Metal seated flanged construction for industrial pipelines
D343H is a metal seated flanged butterfly valve with a triple-offset structure. Its metal sealing arrangement is a configuration option for industrial media and higher-temperature duties where sealing structure and wear considerations matter. Suitability must be reviewed for the actual service rather than inferred from the model name.
Selection must be based on the medium, temperature, pressure, nominal diameter, actuator and operating conditions. Confirm the final materials, sealing pair and operating duty in the approved order documents.
SELECTION GUIDE
Selection Information Required
- Medium and operating temperature
- Design pressure and actual operating pressure
- Nominal diameter and required pressure class
- Connection standard and mating flange requirements
- Actuation method and on/off or modulating duty
- Required quantity
- Installation environment and access constraints
- Body, disc, stem, sealing and documentation requirements
Send these details to TTV Valve — SHANGHAI TAITONG VALVE CO., LTD. — for configuration review.
Send D343H selection information →STRUCTURE & WORKING FEATURES

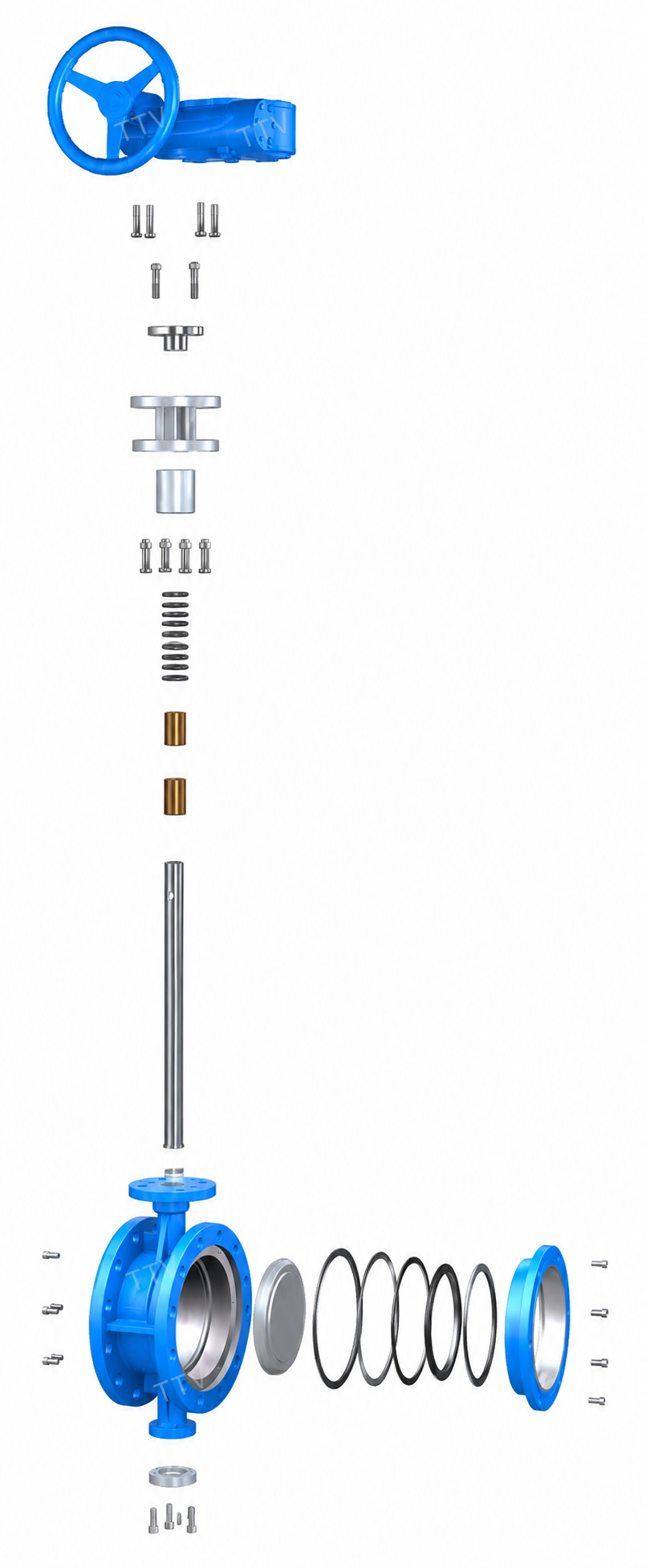

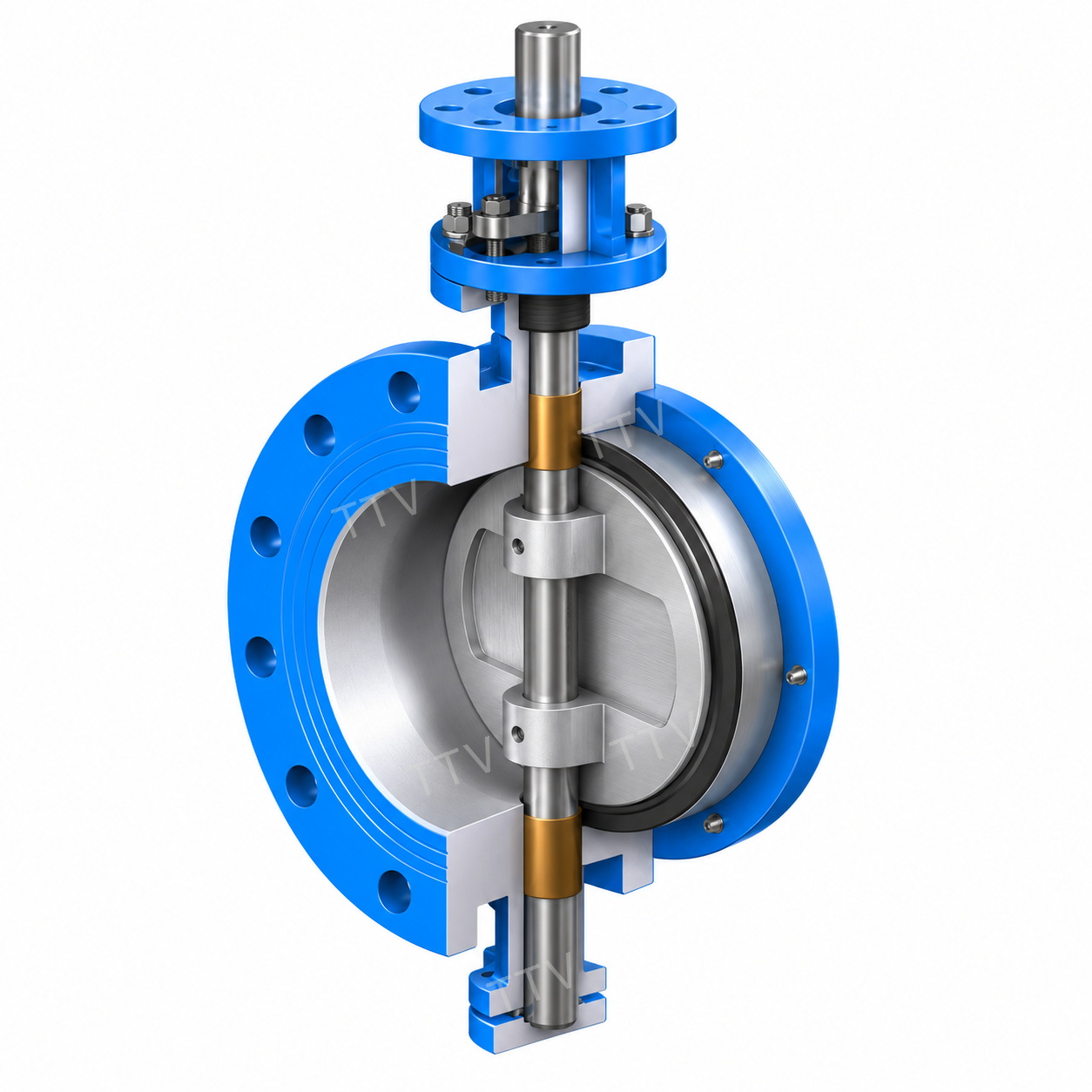

Triple-offset geometry and metal sealing
- Triple-offset structure reduces seat/disc rubbing during opening and closing.
- Metal seated sealing design; confirm the actual metal sealing pair for the selected configuration.
- Flanged pipeline connection with installation dimensions verified against the approved drawing.
- Manual worm-gear operation; electric or pneumatic requirements are reviewed as corresponding configurations.
- Industrial process pipeline isolation and control duties, subject to duty-specific review.
- Selection based on medium, temperature and pressure together, not any single catalogue value.
Shut-off acceptance and modulating suitability must be agreed for the proposed configuration. Triple-offset geometry alone does not establish a leakage class or qualify every control duty.
DIMENSIONS
Dimension and connection drawings
Use the approved order drawing for final installation.

TECHNICAL DATA
Technical parameters and main parts
Final dimensions and configuration must follow the approved order drawing.
Technical Parameters
| Model | D343H |
|---|---|
| Nominal diameter | DN50–DN2000 |
| Nominal pressure | PN1.0–PN4.0 MPa |
| Operating temperature | -29–425°C |
| Connection | Flanged |
| Actuation | Worm gear |
| Sealing | Triple offset metal seated |
| Applicable media | Industrial media, subject to material and operating-condition confirmation |
Main Parts
| Body | WCB, WC6, CF8, CF8M, CF3, CF3M |
|---|---|
| Disc | WCB+ENP, WC6+STL, CF8+STL, CF8M+STL and other available options |
| Stem | 2Cr13, 25Cr2MoV and stainless steel |
| Seat / sealing pair | Stainless steel, Stellite and other available options; metal sealing configuration |
| Packing | Flexible graphite or PTFE (configured for material and temperature) |
Dimensions and Connection Data
| DN | L | D | D1 | z-Φd |
|---|---|---|---|---|
| 100 | 127 | 220 | 180 | 8-Φ18 |
| 125 | 140 | 250 | 210 | 8-Φ18 |
| 150 | 140 | 285 | 240 | 8-Φ22 |
| 200 | 152 | 340 | 295 | 12-Φ22 |
| 250 | 165 | 405 | 355 | 12-Φ26 |
| 300 | 178 | 460 | 410 | 12-Φ26 |
| 350 | 190 | 520 | 470 | 16-Φ26 |
| 400 | 216 | 580 | 525 | 16-Φ30 |
| 450 | 222 | 640 | 585 | 20-Φ30 |
| 500 | 229 | 715 | 650 | 20-Φ33 |
| 600 | 267 | 840 | 770 | 20-Φ36 |
APPLICATIONS
Industrial pipeline duties
Potential duties include industrial water systems, cooling water, utility pipelines, general process pipelines and industrial fluid control. Each application requires confirmation of media compatibility, pressure, temperature, sealing requirements and actuation.
Isolation and modulating duties require separate review. Steam, hot oil, corrosive chemicals or gas must not be assumed suitable without approval of the exact configuration.
APPLICABLE STANDARDS
Confirm project standards
Applicable standards should be confirmed according to the selected valve configuration.
Provide the required valve, flange, inspection and acceptance standards with the RFQ. Do not infer compliance from the model designation.
ACTUATION OPTIONS
Match operation to the duty
Manual: the current D343H configuration uses a worm gear.
Electric / pneumatic: confirm the corresponding formal product model, actuator requirements and assembly before ordering. These options do not change the identity of the worm-gear D343H configuration.
Specify operating frequency, control duty, available utilities, feedback and any required fail position.
RELATED PRODUCTS
Alternative actuation configurations
Review these existing flanged metal seated models if automated operation is required. They are separate configurations, not automatic substitutes for D343H.
