RESILIENT SEATED · WAFER

D971X
Electric Wafer Resilient-Seated Butterfly Valve

Remote isolation and control. Final configuration is selected against the actual medium, temperature, pressure, materials and control requirements.

KEY SPECIFICATIONS

Confirmed product definition

ModelD971X
Sealing / familyResilient seated
ConnectionWafer
ActuationElectric

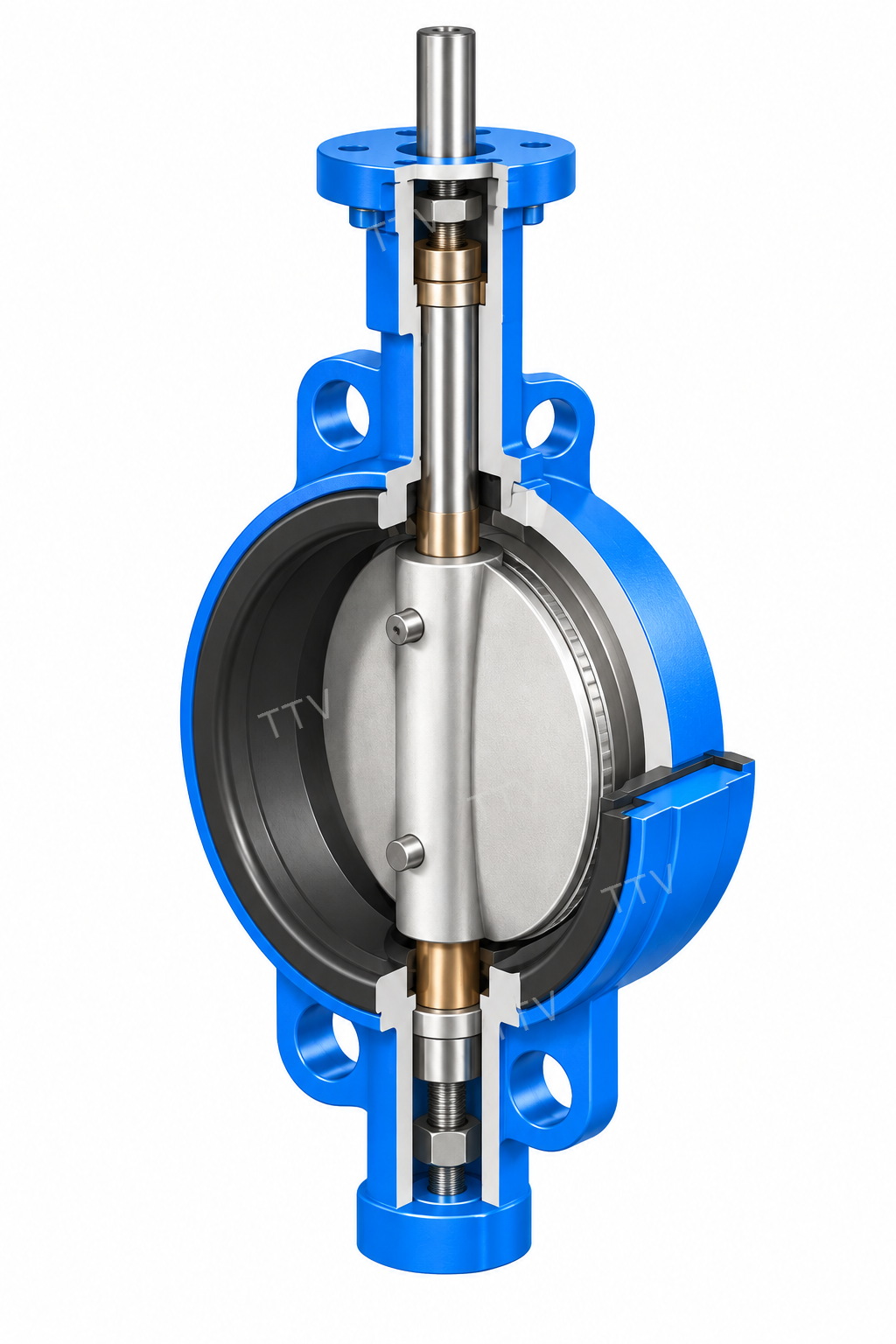

PRODUCT OVERVIEW

Built around the stated duty

D971X is an electric wafer resilient-seated butterfly valve for remote isolation or a separately reviewed control duty. Confirm the medium and composition, operating temperature and pressure, differential pressure and selected body, disc and seat materials before ordering. The listed NBR sealing material and separate temperature references must not be treated as interchangeable approval for every fluid or configuration.

The final order configuration is confirmed against project conditions and approved technical documents. For the electric actuator, provide the supply voltage, phase and frequency, control commands and feedback requirements. On/off duty concerns opening and closing to commanded end positions; modulating duty requires review of intermediate-position control, operating frequency and the proposed actuator's suitability. The model code alone does not establish either control package or a defined action on loss of power.

SELECTION NOTES

Information to confirm

  • Medium and composition, operating temperature and pressure, and maximum differential pressure
  • Required DN / PN, mating flange standard, drilling and pipe bore
  • Body, disc, stem and seat materials, including any cleaning or intermittent service conditions
  • Supply voltage, phase and frequency; available electrical connection details
  • On/off or modulating duty, operating frequency and required opening / closing time
  • Control signal, local / remote operation, end-position indication and position feedback requirements
  • Required response to loss of electrical power or control signal, subject to actuator and control-system confirmation
  • Valve opening, closing and seating torque review at the project differential pressure
  • Actuator mounting interface, coupling and shaft dimensions, orientation, installation clearance and maintenance access
  • Ambient conditions, exposure to moisture or dust, environmental protection requirements, quantity and project documentation

Confirm all electrical, control and mounting details for the ordered configuration. No specific voltage, control signal, torque rating, enclosure protection or fail-safe function is implied as standard.

Will D971X open or close automatically if power is lost?

Do not assume either action from electric operation alone. State the required position or sequence on loss of power and loss of control signal separately; confirm the proposed actuator and control arrangement before ordering.

Does a listed seat temperature establish media compatibility?

No. Review the actual fluid composition, concentration, temperature and pressure with the exact seat compound and other wetted materials. Confirm the selected configuration against approved documents; a temperature reference alone is not approval for another medium or seal material.

DIMENSIONS

Dimension and connection drawings

Use the approved order drawing for final installation.

TECHNICAL DATA

Specifications and dimensions

Final dimensions and configuration must follow the approved order drawing.

Technical Specifications

ModelD971X
Nominal diameterDN50–2000 / DN50–1600
Nominal pressurePN0.6 / 1.0 / 1.6 MPa
Seat test pressure0.66 / 1.1 / 1.76 MPa
Shell test pressure0.9 / 1.5 / 2.4 MPa
Operating temperatureNBR -40°C–90°C;FKM -20°C–200°C
ConnectionWafer
ActuationElectric
SealingResilient seated
Suitable mediaWater, air, natural gas, oil and mildly corrosive fluids
Leakage rateIn accordance with GB/T 13927

Materials / Performance Data

BodyWCB, QT450-10, HT200, HT250
DiscWCB, QT450-10, HT200, HT250
Stem2Cr13
Seal ringOil-resistant NBR
PackingFlexible graphite

Dimensions and Connection Data 1

DNLHHOAB
504363438125125
654670453125125
804683478125125
10052105519125125
12556115713325245
15056137749325245
20060164843325245
25068206947363313
300782301013363313
350782481046363313
4001022891135363313
4501143201328465439
5001273431226546481
6001544131394546556
7001654781534546556
8001905251159546556
9002035851748617706
10002166401805632706
12002547552035632706

Dimensions and Connection Data 2

DNPN0.6 D0PN0.6 n-ΦdPN1.0 D0PN1.0 n-ΦdPN1.6 D0PN1.6 n-Φd
501104-141254-181254-18
651304-141454-181454-18
801504-181608-181608-18
1001704-181808-181808-18
1252008-182108-182108-18
1502258-182408-222408-22
2002808-182958-222958-22
25033512-1835012-2235512-26
30039512-2240012-2241012-26
35044512-2246016-2247016-26
40049516-2251516-2652516-30
45055016-2256520-2658520-30
50060020-2262020-2665020-33
60070520-2672520-3077020-36
70081024-2684024-3084024-36
80092024-3095024-3395024-39
900102024-30105028-33105038-39
1000112028-30116028-36117028-42
1200134032-33138032-39139032-48

APPLICATIONS

Use only after duty review

Remote isolation and control. Media compatibility, temperature limits and actuation details must match the selected configuration.

D971X INQUIRY

Send the operating conditions for configuration review

For a D971X RFQ, send the required DN / PN, flange standard and pipe bore, medium and composition, operating temperature and pressure, maximum differential pressure, body / disc / seat materials, electrical supply, control duty and signals, required loss-of-power response, installation interface and space, site conditions and quantity. Include an actuator specification or approved drawing where available.

For pneumatic operation with resilient seating, review D671X. For an electric wafer valve with metal seating, review D973H. Confirm the different actuation or sealing requirements against the project duty rather than treating these configurations as interchangeable.
