Resilient-Seated Butterfly Valves
Real supplied product photography confirms wafer and flanged forms with lever, gear, pneumatic and electric actuation. Exact DN, PN, materials, seat compounds and model mappings require source sheets before publication.
Selection overview
Define the medium and operating conditions first.
- Connection: wafer, lug or flanged requirement
- DN/size and pressure class
- Medium, temperature and compatibility requirements
- Body, disc, stem and seat material
- Manual, pneumatic or electric operation
- On/off or modulating duty and accessory needs
Verified visual configurations

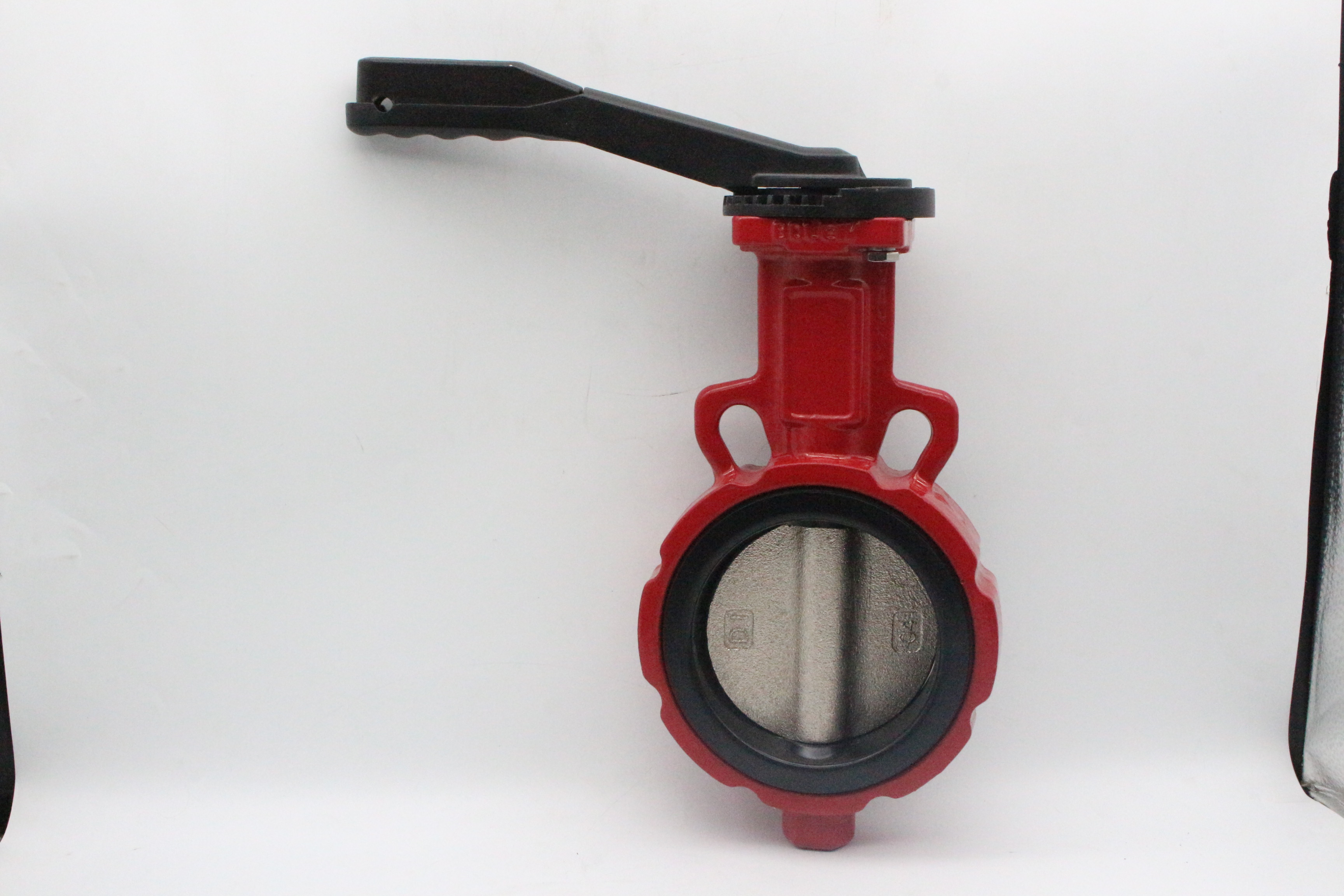

Lever operated
Visual configuration confirmed; model and limits to be confirmed.

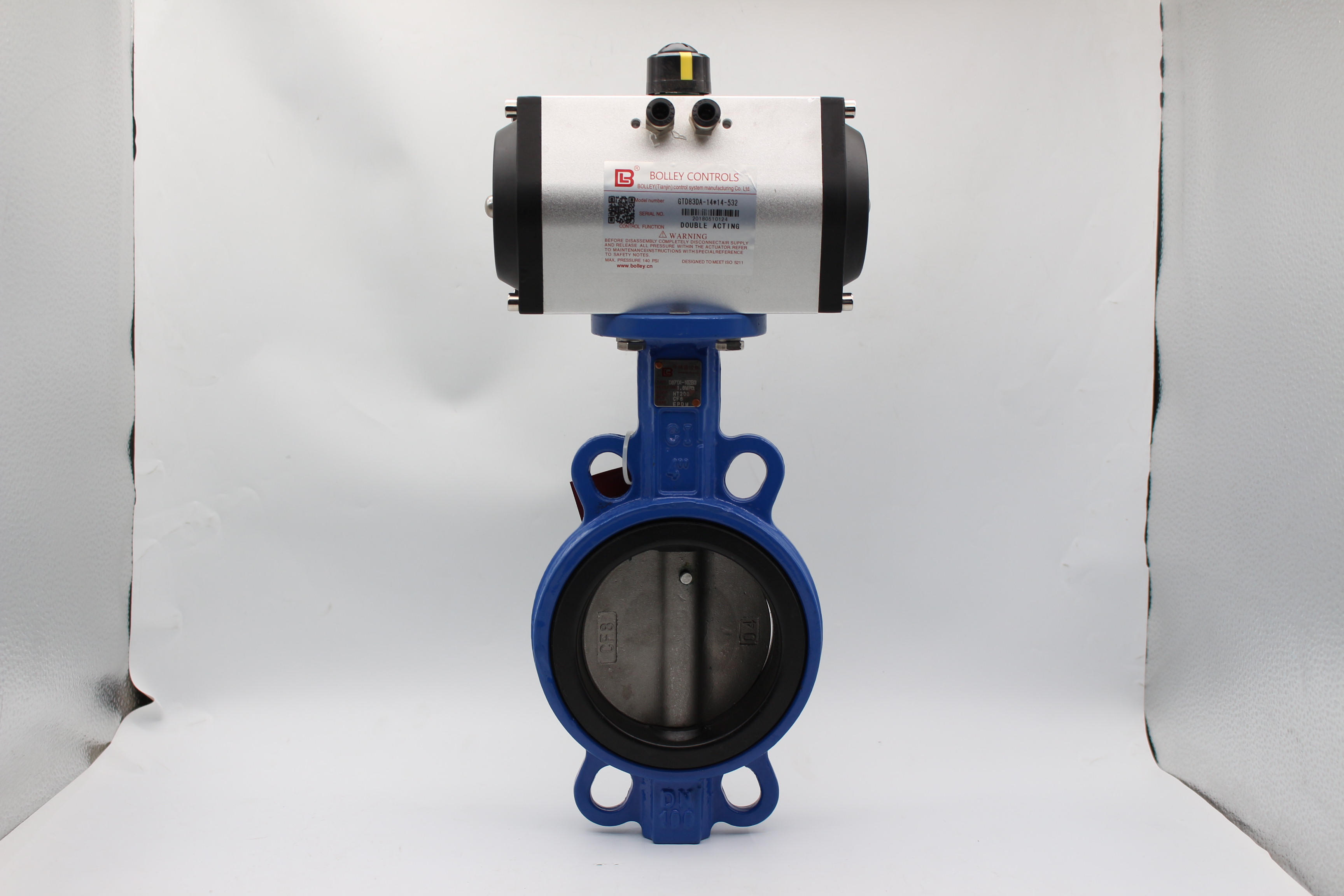

Pneumatic actuation
Air supply, fail position, accessories and control signal must be specified.

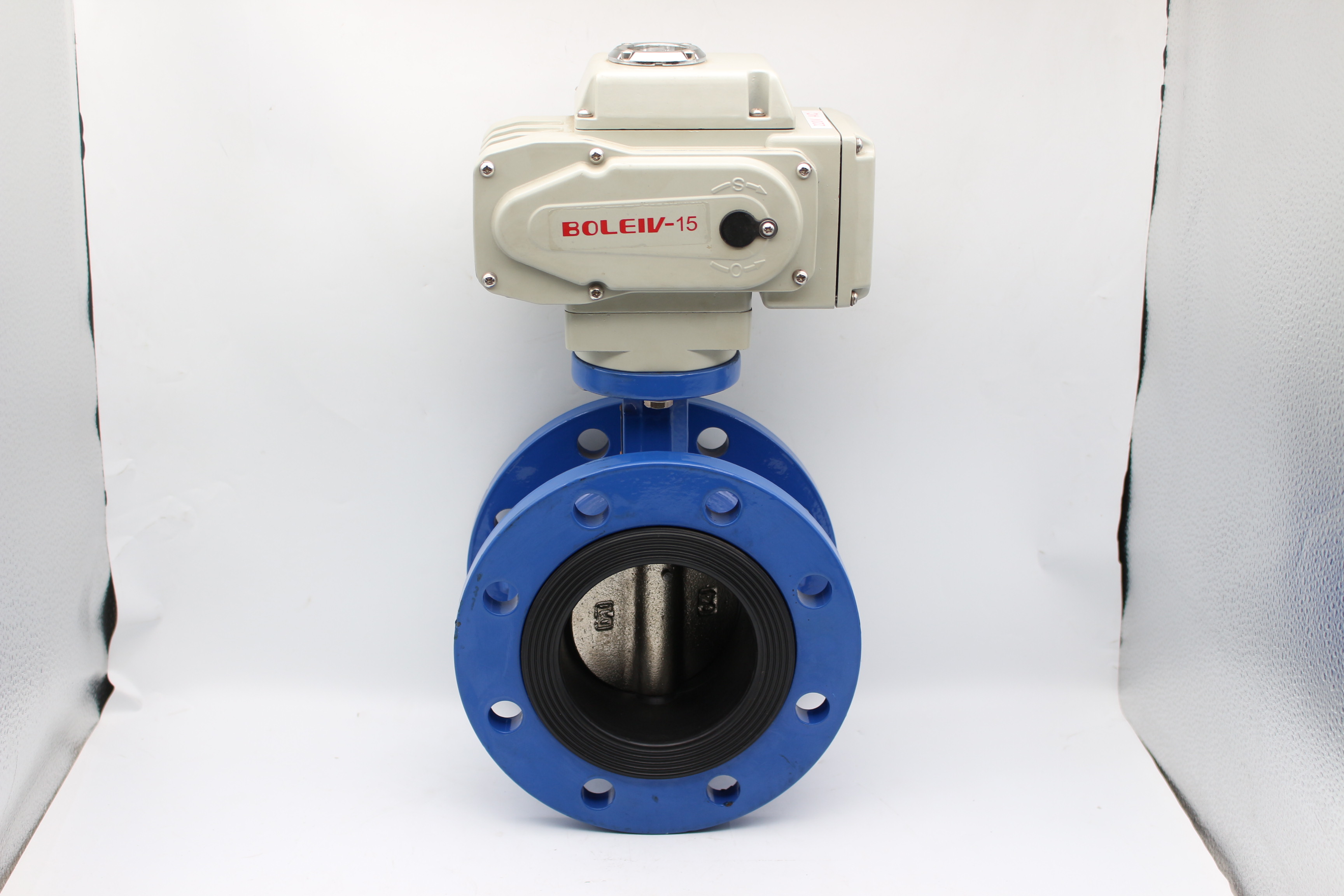

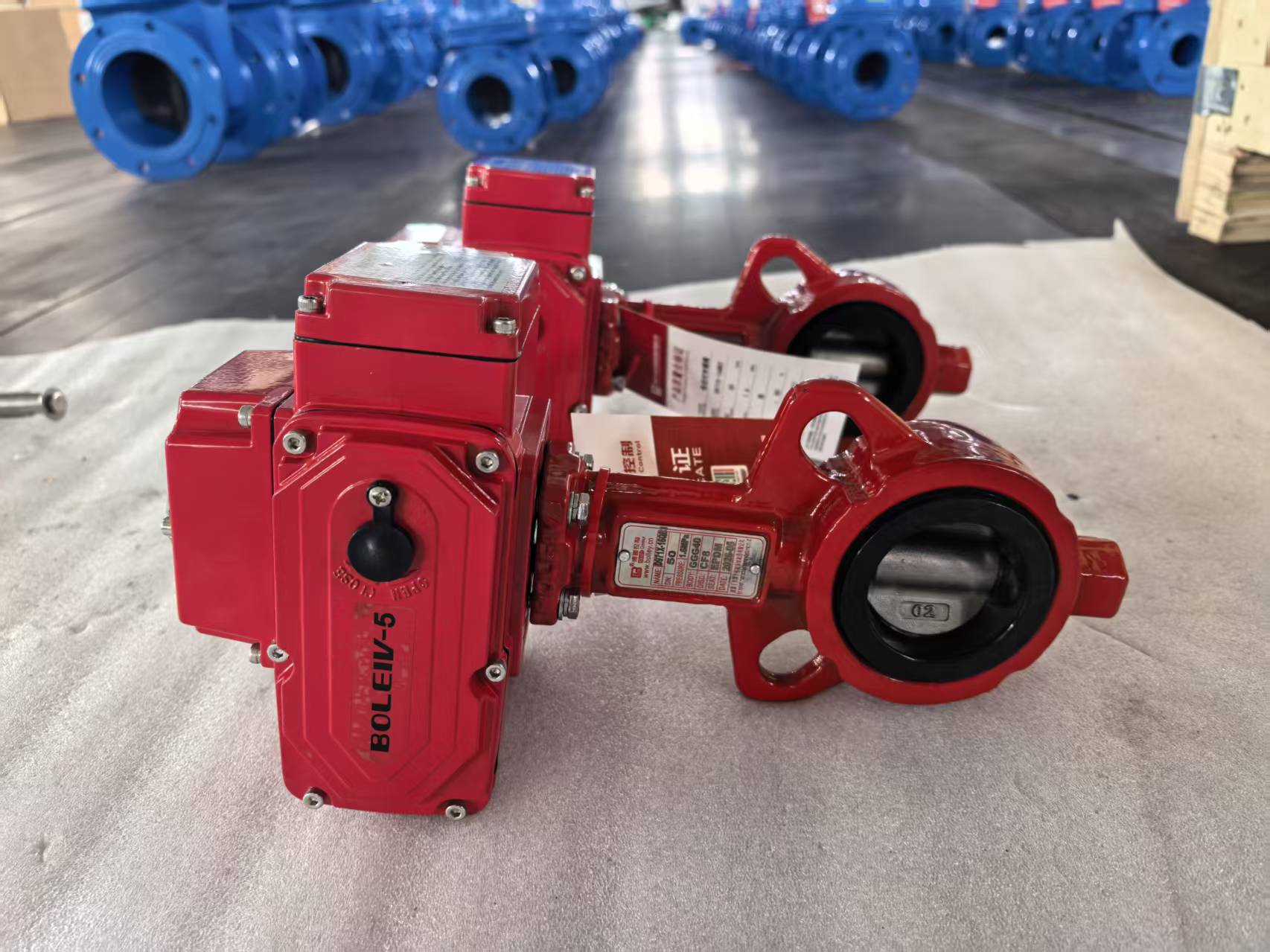

Electric actuation
Voltage, control mode, feedback and protection requirements must be reviewed.
No model-specific parameter table is shown on this family page because the supplied photo archive does not identify exact models and the update archive does not include resilient-seated data sheets.
Send operating conditions
